BD6726FU is a single-phase full-wave motor driver that can be controlled by DC/PWM input, using PWM soft switching drive, and built-in speed feedback control circuit

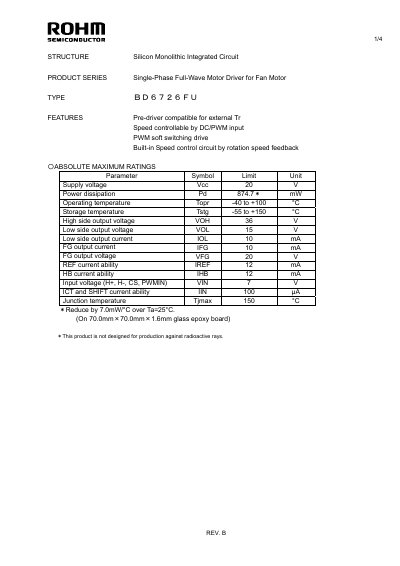

The BD6726FU is a single‑phase full‑wave motor driver IC designed for fan motors. It includes a pre‑driver compatible with external transistors, speed control via DC/PWM input, PWM soft‑switching drive, and a built‑in speed‑control circuit using rotation‑speed feedback.
Key specifications include a supply voltage rating up to 20 V, power dissipation of 874.7 mW, operating temperature range from –40 °C to +100 °C, and defined high‑side and low‑side output voltages and currents. The document also outlines cautions such as absolute‑maximum ratings, reverse‑polarity protection, thermal shutdown behavior, and recommended grounding and capacitor practices.
| Supply voltage (max) | 20 V |
|---|---|
| Power dissipation | 874.7 mW |
| Operating temperature range | -40 °C to +100 °C |
| High‑side output voltage (VOH) | 36 V |
| Low‑side output voltage (VOL) | 15 V |
| Low‑side output current (IOL) | 10 mA |
| Operating supply voltage range | 5.0 V to 17.0 V |
The maximum supply voltage is 20 V.
It can operate from –40 °C up to +100 °C.
The device operates with a supply voltage between 5.0 V and 17.0 V.
