HMC510LP5 is a GaAs InGaP Heterojunction Bipolar Transistor (HBT) MMIC VCO from Hittite Microwave Corporation. The frequency range is 8.45-9.55 GHz. The VCO integrates resonators, negative resistance devices, varactor diodes, and features half frequency and divide-by-4 outputs. The VCO's phase noise performance is excellent over temperature, shock, and process due to the oscillator's monolithic structure. Power output is +13 dBm typical from a +5V supply voltage. The prescaler and RF/2 functions can be disabled to conserve current if not required. The voltage controlled oscillator is packaged in a leadless QFN 5x5 mm surface mount package, and requires no external matching components.
The HMC510LP5 and 510LP5E are GaAs/InGaP HBT MMIC voltage‑controlled oscillators offering a fundamental frequency range of 8.45‑9.55 GHz with half‑frequency (4.225‑4.775 GHz) and divide‑by‑4 outputs. They deliver up to +15 dBm output power, feature low phase‑noise performance (‑116 dBc/Hz at 100 kHz offset), and operate from a single +5 V supply without external resonators.

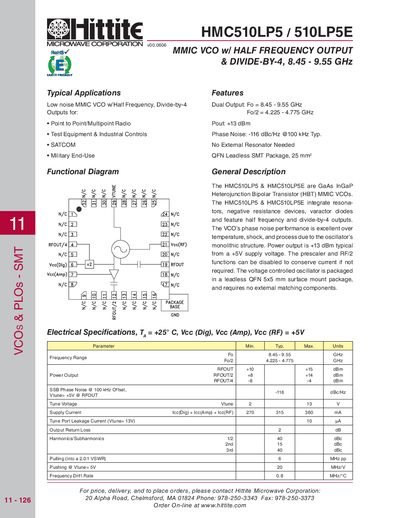

The datasheet lists electrical specifications, pin functions, package dimensions, and a typical evaluation PCB layout. Ordering information and contact details for Hittite Microwave Corporation are provided at the end of the document.
| Frequency range (Fundamental) | 8.45 – 9.55 GHz |
|---|---|
| Half‑frequency output range | 4.225 – 4.775 GHz |
| RFOUT output power | +10 to +15 dBm |
| Supply current (Dig / Amp / RF) | 270 mA / 315 mA / 360 mA |
| Frequency drift rate | 0.8 MHz/°C |
| Operating temperature | -40 °C to +85 °C |
It operates from 8.45 GHz to 9.55 GHz.
Typical RFOUT output power is between +10 dBm and +15 dBm.
