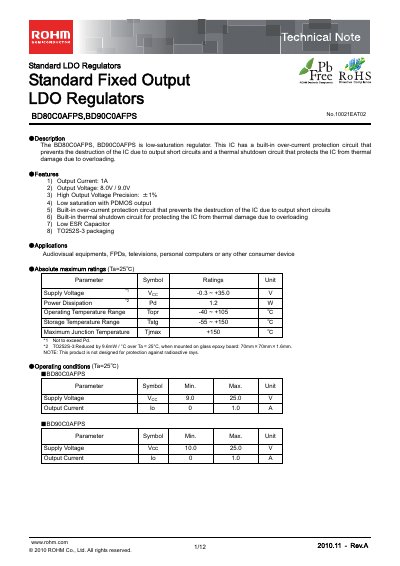

The BD80C0AFPS, BD90C0AFPS is a low saturation regulator with 1A output current, 8.0V/9.0V output voltage, ±1% high output voltage precision, low saturation PDMOS output, built-in over current protection circuit, built-in thermal shutdown circuit, low ESR capacitor and TO252S-3 package. Applications include audio-visual equipments, FPDs, televisions, personal computers or any other consumer device.
The BD80COAFPS (and BD90COAFPS) are low‑saturation LDO regulators with built‑in over‑current protection and thermal shutdown. They deliver 1 A output current with high voltage precision (+1 %) and low ESR capacitor requirements, packaged in a TO252S‑3 surface‑mount case.
These regulators are intended for audiovisual equipment, FPDs, televisions, personal computers and other consumer devices. The document lists absolute maximum ratings, operating conditions, electrical characteristics, thermal design guidelines, and ordering information.
| Output Current | 1 A |
|---|---|
| Output Voltage | 8.0 V / 9.0 V |
| Output Voltage Precision | +1 % |
| Package | TO252S‑3 |
| Supply Voltage Range | -0.3 V to +35.0 V |
| Power Dissipation (max) | 1.2 W |
| Operating Temperature Range | -40 °C to +105 °C |
| Maximum Junction Temperature | +150 °C |
The regulator can supply up to 1 A of output current.
The device is supplied in a TO252S‑3 surface‑mount package.
The regulator is rated for ambient temperatures from –40 °C to +105 °C.
