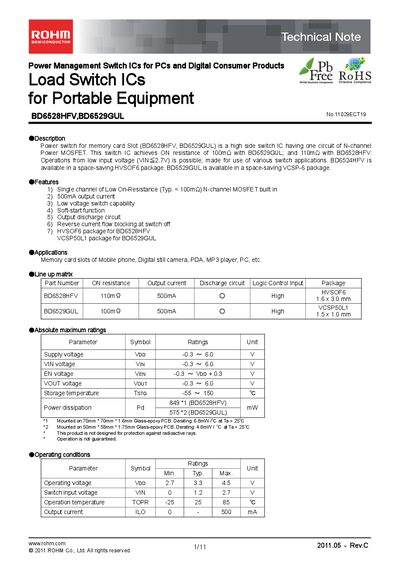

This document introduces the power management switch ICs for PCs and digital consumer products, as well as the load switch ICs for portable equipment produced by ROHM. These ICs have low on-resistance and high-side switch capabilities, suitable for various switch applications. The products feature low on-resistance, 500mA output current, soft-start function, output discharge circuit, etc. They are suitable for memory card slots in mobile phones, digital cameras, PDAs, MP3 players, PCs, etc.
The BD6529GUL is a high‑side power‑switch IC with a single N‑channel MOSFET, designed for memory‑card slots and other low‑voltage applications. It offers a typical on‑resistance of 100 mΩ, 500 mA output current, soft‑start, reverse‑current blocking and an integrated discharge circuit.
The document provides detailed electrical characteristics, pin descriptions, block diagrams, timing diagrams, waveform data and example application circuits, as well as ordering information and package specifications.
| Maximum output current | 500 mA |
|---|---|
| Supply voltage range (Vpb) | 0.3 V ~ 6.0 V |
| Enable input voltage (EN) | -0.3 V ~ Vpop+0.3 V |
It can supply up to 500 mA of output current.
The device operates from 0.3 V to 6.0 V.
