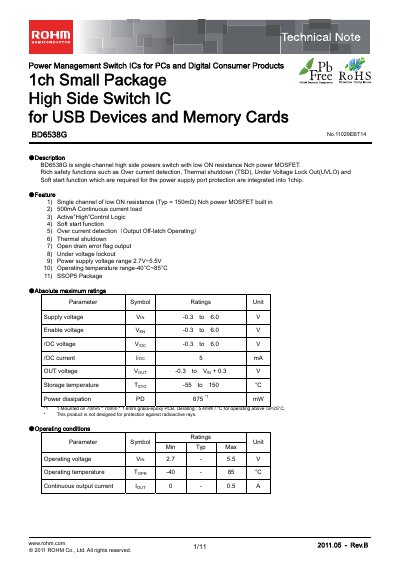

BD6538G is a single channel high side power switch IC for USB devices and memory cards, with a low ON resistance Nch power MOSFET. It integrates various safety functions such as over current detection, thermal shutdown, under voltage lock out, and soft start function for power supply port protection.
The BD6538G is a single‑channel high‑side power switch IC with a low ON‑resistance N‑channel MOSFET, designed for USB devices and memory cards. It integrates safety functions such as over‑current detection, thermal shutdown, under‑voltage lockout, and a soft‑start feature.
The document includes absolute maximum ratings, operating conditions, electrical characteristics, pin configurations, timing diagrams, waveform data, and ordering information, helping designers implement the device in consumer electronics and other applications.
| Typical ON resistance | 150 mΩ |
|---|---|
| Supply voltage range | 2.7 V – 5.5 V |
| Operating temperature range | -40 °C – 85 °C |
| Package type | SSOP5 |
The typical ON resistance is 150 mΩ.
It operates from –40 °C to 85 °C.
It supports a supply voltage between 2.7 V and 5.5 V.
