BD6046GUL is a charge protection IC with built-in FET negative voltage protection produced by ROHM. It can prevent negative voltage caused by USB reverse insertion without any additional components, and also has overvoltage protection, overcurrent protection, temperature protection and other functions.
The BD6046GUL is a charge‑protection IC that safeguards devices from abnormal input voltage at a USB port, including protection against reverse insertion. It offers over‑voltage protection up to 28 V, negative‑voltage protection, an internal low‑Ron FET, OVLO, UVLO, over‑current and thermal shutdown functions, all in a compact VCSP50L2 package.

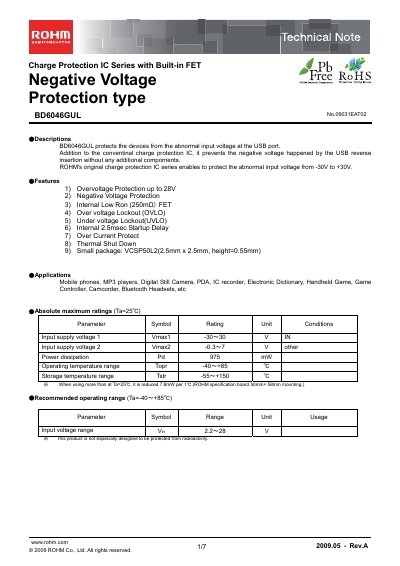

The note provides detailed electrical characteristics, pin descriptions, a block diagram, typical application circuit, timing diagrams, ordering information and extensive usage notes such as recommended operating ranges, layout guidelines and safety precautions.
| Overvoltage Protection | up to 28 V |
|---|---|
| Negative Voltage Protection | enabled |
| Internal Low Ron FET | 250 mΩ |
| Under Voltage Lockout (UVLO) | typical 3.6 V |
| Over Voltage Lockout (OVLO) | typical 6.7 V |
| Power Dissipation (Pd) | 975 mW |
| Operating Temperature Range | -40 °C to +85 °C |
| Startup Delay | 2.5 ms |
| Package | VCSP50L2 (2.5 mm × 2.5 mm, height 0.55 mm) |
It protects against abnormal input voltages from –30 V to +30 V, with over‑voltage protection up to 28 V.
The device includes an internal startup delay of 2.5 ms.
It is supplied in a VCSP50L2 package measuring 2.5 mm × 2.5 mm with a height of 0.55 mm.
