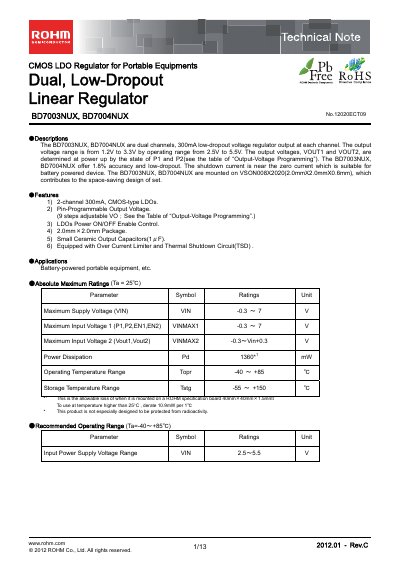

BD7003NUX, BD7004NUX are dual channels, 300mA low-dropout voltage regulator output at each channel. The output voltage range is from 1.2V to 3.3V by operating range from 2.5V to 5.5V. The shutdown current is near the zero current which is suitable for battery powered device.
The ROHM BD7003NUX and BD7004NUX are dual‑channel, 300 mA CMOS low‑dropout regulators designed for portable battery‑powered equipment. Each channel provides a programmable output voltage from 1.2 V to 3.3 V, selectable by the state of pins P1 and P2 at power‑up.
The devices are offered in a compact 2.0 mm × 2.0 mm VSON008X2020 package, include over‑current and thermal shutdown protection, and feature low shutdown current suitable for battery‑saving applications.
| Output Voltage range | 1.2 V – 3.3 V |
|---|---|
| Input Voltage range | 2.5 V – 5.5 V |
| Maximum Output Current | 300 mA per channel |
| Power Dissipation (typical) | 1.36 W |
Each channel can deliver up to 300 mA of output current.
The output voltage is set by the state of pins P1 and P2 at power‑up; the pins are pin‑programmable.
The shutdown current is near zero, reducing supply current to a very low level.
