BD6520F/22F is a low on-resistance N-channel MOS switch with a built-in charge pump, a switch current of 2A, support for soft-start control, a built-in discharge circuit, a undervoltage lockout circuit, a thermal shutdown circuit, and a reverse current blocking function (BD6522F only).

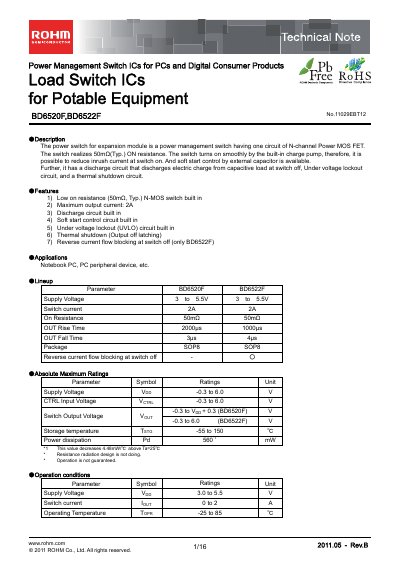

The ROHM BD6520F and BD6522F are N‑channel power‑MOSFET load‑switch ICs designed for PCs and digital consumer products. They provide low on‑resistance, built‑in discharge, soft‑start control, UVLO and thermal‑shutdown functions.
The document includes a detailed description, electrical specifications, typical performance graphs, waveform data and ordering part numbers, making it a comprehensive reference for designers integrating these switches into electronic equipment.
| Supply Voltage | 3 V to 55 V |
|---|---|
| Maximum Output Current | 2 A |
| On‑Resistance (typ) | 50 mΩ |
| Package | SOP8 |
| Operating Temperature Range | -25 °C to 85 °C |
The maximum output current is 2 A.
The typical on‑resistance is 50 mΩ.
Both devices are supplied in an SOP8 package.
