BD26502GUL is “Matrix LED Driver”, is suitable for cellular phone LED driver, can control 7x17(119 dot) LED Matrix, support SPI and I2C interface.
The BD26502GUL is a matrix LED driver designed for mobile phones, capable of controlling a 7×17 (119‑dot) LED matrix with internal 7‑channel PMOS switches and 17‑channel current drivers. It supports SPI and I²C interfaces and offers adjustable luminance, firefly lighting, and automatic scrolling functions.

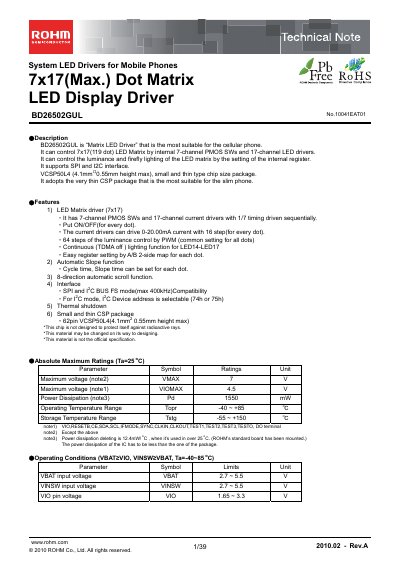

The document includes absolute maximum ratings, operating conditions, electrical characteristics, package details (62‑pin VCSP50L4 CSP), pin functions, block diagrams for example circuits, and ordering information. It is intended for designers integrating the driver into slim electronic devices.
| Maximum voltage VMAX | 7 V |
|---|---|
| Maximum voltage VIOMAX | 45 V |
| Power Dissipation Pd | 1550 mW |
| Operating Temperature Range | -40 ~ +85 °C |
| VBAT input voltage range | 2.7~5.5 V |
| Maximum LED driver current ILEDMax | 20.00 mA |
| Package pin count | 62 pins |
It supports SPI and I²C interfaces.
The device is packaged in a 62‑pin VCSP50L4 CSP.
Each LED driver channel can source up to 20.00 mA.
The device operates from –40 °C to +85 °C.
