BD2226G and BD2227G are low on-resistance N-channel MOSFET high-side power switches, optimized for Universal Serial Bus (USB) applications.
The BD2226G and BD2227G are low‑on‑resistance N‑channel MOSFET high‑side power switches optimized for USB and memory‑card applications. They integrate over‑current detection, thermal shutdown, under‑voltage lockout and soft‑start functions.

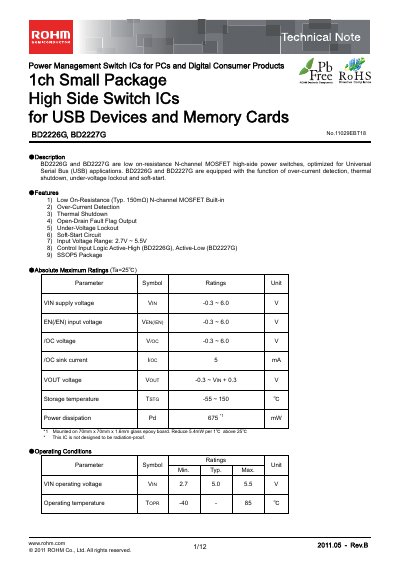

The document provides absolute maximum ratings, operating conditions, detailed electrical characteristics, timing diagrams, block and pin descriptions, as well as ordering information and packaging details.
| Typical On‑Resistance (RON) | 150 mΩ |
|---|---|
| Input Voltage Range | 2.7 V ~ 5.5 V |
| Operating Temperature | -40 °C ~ 85 °C |
| Over‑Current Threshold (ITH) | Typical 1000 mA |
| Package | SSOP5 |
The typical on‑resistance is 150 mΩ.
It operates from 2.7 V to 5.5 V.
They are supplied in an SSOP5 package.
