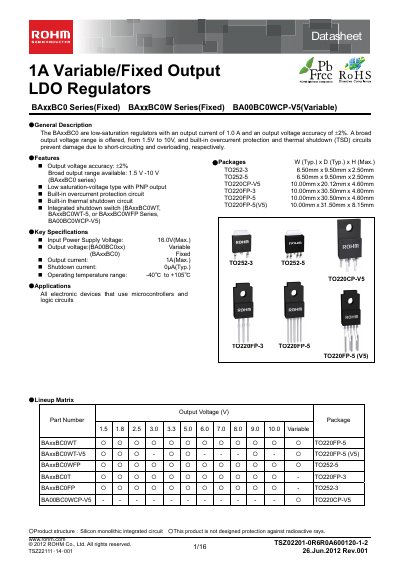

The BAxxBC0 series is a low-saturation regulator with an output current of 1.0 A and an output voltage accuracy of ±2%. A broad output voltage range is offered, from 1.5V to 10V, and built-in overcurrent protection and thermal shutdown (TSD) circuits prevent damage due to short-circuiting and overloading, respectively.
The BA25BC0WT is a low‑saturation LDO regulator offering a broad output voltage range from 1.5 V to 10 V (variable versions available) with an output current of up to 1 A. It includes built‑in over‑current protection and thermal shutdown to prevent damage from short‑circuiting or overload.
Key features include a low saturation‑voltage PNP output, output voltage accuracy of +2%, and operation over an ambient temperature range of –40 °C to +105 °C. The device is supplied in TO‑220, TO‑252, and other standard packages.
| Output voltage accuracy | +2% |
|---|---|
| Output voltage range | 1.5 V – 10 V (variable) |
| Maximum output current | 1 A |
| Maximum junction temperature | 150 °C |
The device can deliver up to 1 A of output current.
The regulator provides a fixed output from 1.5 V to 10 V, with variable versions also offered.
