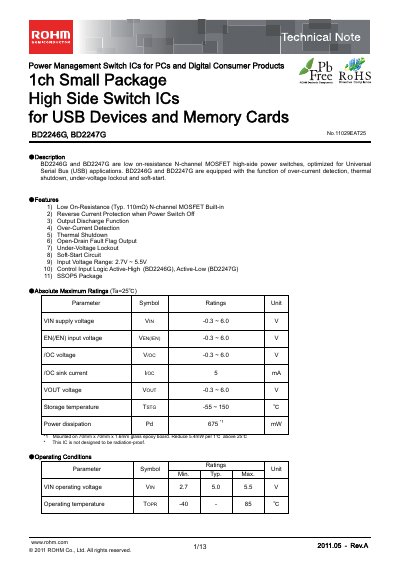

BD2246G and BD2247G are low on-resistance N-channel MOSFET high-side power switches, optimized for Universal Serial Bus (USB) applications. BD2246G and BD2247G are equipped with the function of over-current detection, thermal shutdown, under-voltage lockout and soft-start.
The ROHM BD2246G and BD2247G are low‑on‑resistance N‑channel MOSFET high‑side power switches designed for USB and memory‑card applications. They integrate over‑current detection, thermal shutdown, under‑voltage lockout, soft‑start and an open‑drain fault‑flag output.
The document provides absolute maximum ratings, operating conditions, detailed DC and AC electrical characteristics, pin descriptions, a block diagram, measurement circuits and ordering information for the SSOP5 package.
| Typical On‑Resistance (Ron) | 110 mΩ |
|---|---|
| Input Voltage Range | 2.7 V ~ 5.5 V |
| Package | SSOP5 |
| Over‑Current Detection | Enabled |
| Thermal Shutdown | Enabled |
| Under‑Voltage Lockout (UVLO) | Enabled |
| Soft‑Start Circuit | Enabled |
| Supply Voltage Rating (VIN) | -0.3 V ~ 60 V |
| Control Input Logic | Active‑High for BD2246G, Active‑Low for BD2247G |
The typical on‑resistance is 110 mΩ.
A low‑level EN (/EN) input turns the switch on for the BD2247G.
The devices operate from –40 °C to 85 °C.
The maximum supply voltage rating is 60 V.
