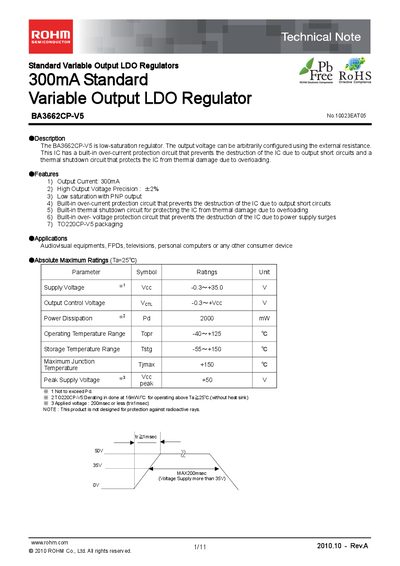

BA3662CP-V5 is a low-saturation regulator. The output voltage can be arbitrarily configured using the external resistance. This IC has a built-in over-current protection circuit that prevents the destruction of the IC due to output short circuits and a thermal shutdown circuit that protects the IC from thermal damage due to overloading.
The BA3662CP-V5 is a low‑saturation, 300 mA variable‑output LDO regulator whose output voltage can be set arbitrarily with external resistors. It includes built‑in over‑current, over‑voltage and thermal‑shutdown protection circuits to safeguard the device.
The regulator is supplied in a TO220CP‑V5 package and is intended for audiovisual equipment, televisions, PCs and other consumer devices. The document lists absolute maximum ratings, electrical characteristics, pin configuration, thermal design guidelines and ordering information.
| Output Current | 300 mA |
|---|---|
| Output Voltage Range | 3.0 V – 15.0 V |
| Over‑Voltage Protection | up to 30 V |
| Maximum Junction Temperature | 150 °C |
The device can deliver up to 300 mA of output current.
Connect resistors R1 and R2 as shown; their ratio determines the output voltage.
