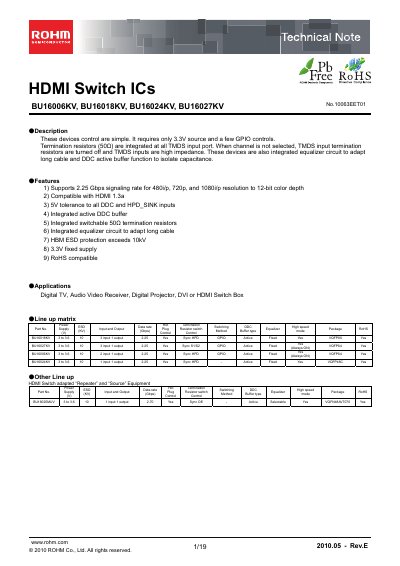

This datasheet introduces the characteristics and applications of BU16006KV, BU16018KV, BU16024KV, BU16027KV and other HDMI switch ICs.
The document provides a technical overview of ROHM's HDMI switch IC family (BU16006KV, BU16018KV, BU16024KV, BU16027KV). It describes key features such as 2.25 Gbps signaling, integrated 3.3 V supply, switchable 500 Ω termination resistors, and built‑in equalizer and DDC buffer.
Detailed electrical specifications, absolute maximum ratings, timing parameters, and recommended operating conditions are listed. The note also includes a line‑up matrix, ordering part numbers, and packaging information for the various package types (VQFP48C, VQFP64, VQFP80).
| Signaling rate | 2.25 Gbps |
|---|---|
| Termination resistance | 500 Ω (switchable) |
| Power dissipation (max) | 1000 mW |
The devices support a signaling rate of up to 2.25 Gbps.
A fixed 3.3 V supply is required.
The ICs provide a switchable 500 Ω termination resistor.
