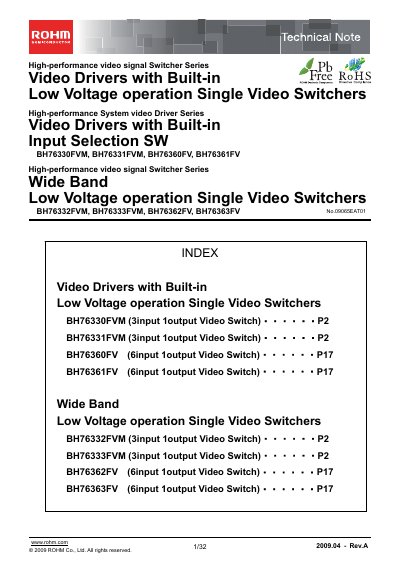

This document introduces the high-performance video signal switcher series products from ROHM, including video drivers with built-in low voltage operation and input selection switch for single video switchers. It also introduces single video switchers with wide band low voltage operation. The document lists the features and characteristics of each model.
The ROHM BH76363FV is a high‑performance video signal switcher IC that operates from 2.8 V to 5.5 V and supports 6‑input, 1‑output configurations. It includes a built‑in video amplifier and driver, offering a wide dynamic range, low crosstalk, and a standby function.
The document provides electrical characteristics, pin settings, block diagrams, recommended application circuits, and ordering information such as tape‑and‑reel packaging. It is intended for use in car navigation systems, TVs, DVD players, and similar audiovisual equipment.
| Supply voltage range | 2.8 V – 5.5 V |
|---|---|
| Power dissipation | 4.7 mW per °C |
| Input voltage range | 0 V – VCC + 0.2 V |
| Voltage gain | 6.0 dB (typ.) |
| Standby current | 0 µA (typ.) |
| Input impedance | 150 kΩ |
| Package | MSOP‑8 |
It operates from 2.8 V up to 5.5 V.
The standby current is 0 µA (typical).
Only the BH76330FVM model can be used without an output coupling capacitor; other models require it.
