BH7673G is a SSOP5 small package, low current, high common mode rejection ratio, wide dynamic range, high input impedance, wide band single-channel video isolation amplifier, suitable for D4 standard.
The BH7673G is a silicon monolithic integrated circuit that provides video isolation with low current consumption and high common‑mode rejection. It is supplied in an SSOP‑5 package and includes bias input, high input impedance and a wide output dynamic range.

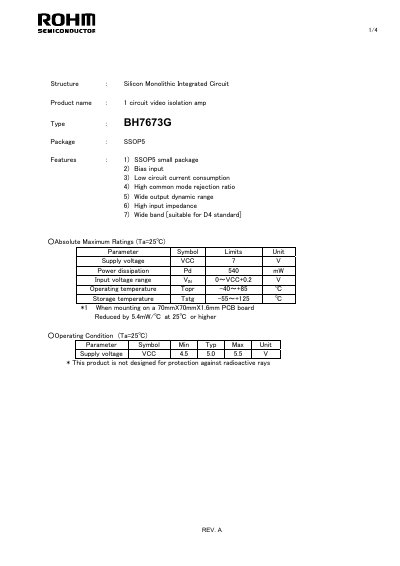

The document lists absolute maximum ratings, electrical characteristics, pin configuration, test circuit diagrams and cautions for proper mounting and thermal design. It also contains legal notices and contact information for ROHM.
| Power dissipation (Pd) | 540 mW |
|---|---|
| Input voltage range (Vin) | 0 V ~ VCC+0.2 V |
| Operating temperature | -40 °C ~ +85 °C |
| Storage temperature | -55 °C ~ +125 °C |
| Circuit current (ICC) | 8.0 mA (typ) |
| Maximum output level (Vom) | 3.8 Vpp (typ) |
| Voltage gain (Gy) | 0.0 dB (typ) |
| Common‑mode rejection ratio (CMRR) | -40 dB (typ) |
| Input impedance (Zin) | 150 kΩ (typ) |
The typical circuit current (ICC) is 8.0 mA.
The typical maximum output level is 3.8 Vpp.
The device operates from –40 °C to +85 °C.
