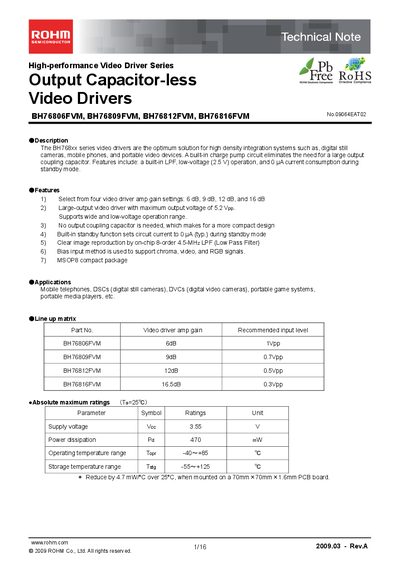

BH768xx series video drivers are the optimum solution for high density integration systems such as, digital still cameras, mobile phones, and portable video devices. A built-in charge pump circuit eliminates the need for a large output coupling capacitor. Features include: a built-in LPF, low-voltage (2.5 V) operation, and 0 µA current consumption during standby mode.
The BH76816FVM is a high‑performance video driver in the ROHM BH768xxFVM series. It operates from a single 3 V supply, includes a built‑in charge pump, and eliminates the need for an external output coupling capacitor. The device offers four gain settings, up to 5.2 Vpp output, and low standby current.
The document provides detailed electrical characteristics, pin functions, typical application circuits, and mechanical data such as package type (MSOP8) and tape‑and‑reel dimensions. It also includes ordering information and legal notices.
| Supply voltage (VEE) | 3.55 V |
|---|---|
| Power dissipation | 470 mW |
| Operating temperature range | -40 °C to +85 °C |
| Maximum output level (VOM) | 5.2 Vpp |
| Voltage gain (BH76816FVM) | 16.5 dB |
| Package | MSOP8 |
| Standby current (typ.) | 0 µA |
The standby current is typically 0 µA.
It is supplied in an MSOP8 compact package.
The device can output up to 5.2 Vpp.
The recommended supply voltage is between 3.0 V and 3.45 V (typical 3 V).
