This complete new line of zener/tvs diodes offers a 2.5 watt series in a micro miniature, space saving surface mount package. The Powermite zener/tvs diodes are designed for use as a tvs or a regulation device in automotive and telecommunication applications where efficiency, low leakage, size/height and profile are important.

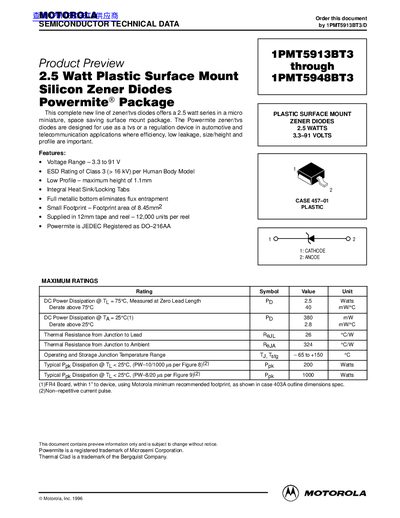

This document provides technical data and specifications for a series of 2.5 Watt Plastic Surface Mount Silicon Zener Diodes from Motorola, designated as the Powermite package (Case 457-01). The devices are designed for use in automotive and telecommunication applications where efficiency, low leakage, and small size are important.
| DC Power Dissipation @ TL = 75°C | 25 Watts |
|---|---|
| Thermal Resistance Junction to Ambient | 324 °C/W |
| Operating and Storage Junction Temperature Range | -65 to +150 °C |
| Voltage Range | 3.3 to 91 V |
| ESD Rating (Human Body Model) | > 16 kV |
The maximum height is 1.1mm.
They are supplied in 12mm tape and reel with 12,000 units per reel.
