NextVision 5 is a TV converter that supports 1024x768 high resolution, it can convert analog TV signals to digital and display them on LCD, CRT or projection displays

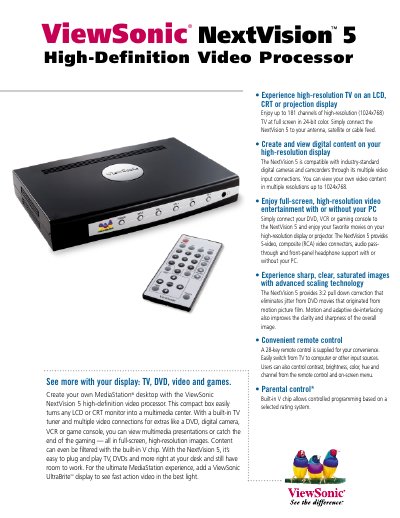

The NextVision 5 is a compact high‑definition video processor that turns any LCD, CRT, plasma or projector into a multimedia center. It supports up to 181 TV channels, multiple video inputs (RF, S‑video, composite, RGB) and offers features such as 3:2 pull‑down correction, motion de‑interlacing, and parental control via a built‑in V chip.
The manual covers connection diagrams, remote‑control functions, power requirements, operating conditions, and a full list of technical specifications. It also includes accessories supplied with the unit and regulatory compliance information.
| RF Tuner Model | FI1236MK2 (North America) |
|---|---|
| Frequency Range | 55.25–801.25 MHz |
| Number of Channels | 2–69 off‑air, 2–125 NTSC cable |
| Input Signal Types | RF, S‑video, composite (RCA), RGB pass‑through |
| Audio Output | Mono/stereo/SAP (MTS) |
| Power Input | 120 V AC, 60 Hz |
| Power Output | 12 V DC, 1.2 A |
| Operating Temperature | 0–40 °C (32–104 °F) |
The NextVision 5 can receive up to 181 high‑resolution TV channels.
The 28‑key IR remote controls power, volume, channel selection, contrast, brightness, hue, saturation, sleep timer, and other on‑screen menu functions.
Yes, a built‑in V chip provides parental control based on rating selections.
It accepts RF, S‑video, composite (RCA), and RGB pass‑through inputs.
