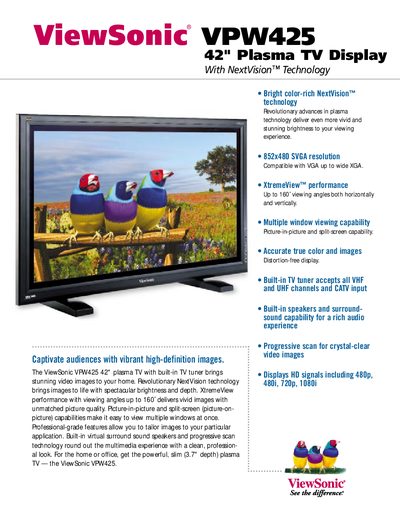

The ViewSonic VPW425 42-inch plasma TV with built-in TV tuner brings stunning video images to your home.
The ViewSonic VPW425 is a 42‑inch plasma TV with NextVision™ technology, built‑in TV tuner, surround‑sound speakers, and a slim 3.7" depth design. It offers vivid images with up to 160° viewing angles and supports multiple video formats including 480p, 720p and 1080i.
This manual covers product specifications, power requirements, connector options, remote‑control functions, installation accessories, mounting options, and warranty information, helping users install and operate the display safely and efficiently.
| Panel Type | 42" color PDP |
|---|---|
| Resolution | 852x480 SVGA (native mode) |
| Aspect Ratio | 16:9 |
| Viewing Angle | 160° horizontal, 160° vertical |
| Pixel Pitch | 1.08 mm (H) × 1.08 mm (V) |
| Color Depth | 8‑bits/color (16.7 million colors) |
| Connectors | DVI 24‑pin, VGA 15‑pin, RS232, S‑video, composite, component, audio mini‑jack |
| Power Input | AC 100‑240 V ±10 % |
| Typical Power Consumption | 370 W |
| Dimensions (display only) | 40.9" × 25.6" × 3.7" (W×H×D) |
| Net Weight | 77.2 lb (35.0 kg) |
| Operating Humidity | 20‑80 % (non‑condensing) |
It operates on AC voltage from 100 V to 240 V with a tolerance of ±10 %.
