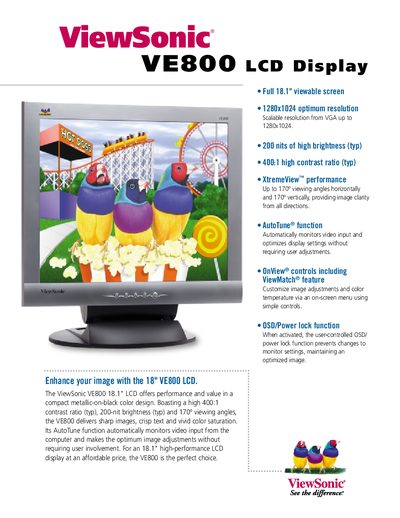

The VE800 is a 18.1-inch LCD display from ViewSonic. It features a high 400:1 contrast ratio, 200 nits of brightness, and 170° viewing angles, providing sharp images, crisp text, and vivid color saturation.
The VE800 is an 18.1" color TFT active‑matrix LCD with a 1280×1024 optimum resolution, 400:1 contrast ratio, 200 nits brightness, and 170° viewing angles. It includes AutoTune® for automatic image optimization and OnView® controls for easy on‑screen adjustments.
The manual covers technical specifications, video input options, mounting options (fold‑up base and VESA‑compliant wall mount), power requirements, and warranty information, helping users install and operate the display safely and efficiently.
| Screen size | 18.1" diagonal |
|---|---|
| Resolution | 1280 x 1024 |
| Contrast ratio | 400:1 (typ) |
| Viewing angle | 170° horizontal, 170° vertical |
| Response time | 25 ms |
| Light source life | 50,000 hrs (typ) |
| Power voltage | AC 100‑240 V, 50‑60 Hz |
| Dimensions | 421 mm × 428 mm × 230 mm |
| Weight | 14.2 lb (6.5 kg) |
AutoTune® automatically monitors video input and optimizes display settings without requiring user adjustments.
