The ADM3202/ADM3222/ADM1385 transceivers are high speed, 2-channel RS-232/V.28 interface devices that operate from a single 3.3 V power supply. Low power consumption and a shutdown facility (ADM3222/ADM1385) make them ideal for battery-powered portable instruments. The ADM3202/ADM3222/ADM1385 parts are available in PDIP, SOIC_N, SOIC_W, SSOP, and TSSOP packages.
The ADM3202/ADM3222/ADM1385 family provides high‑speed, dual‑channel RS‑232/V.28 interfaces that operate from a single 3.3 V supply. Low power consumption and shutdown features make them suitable for battery‑powered portable instruments.

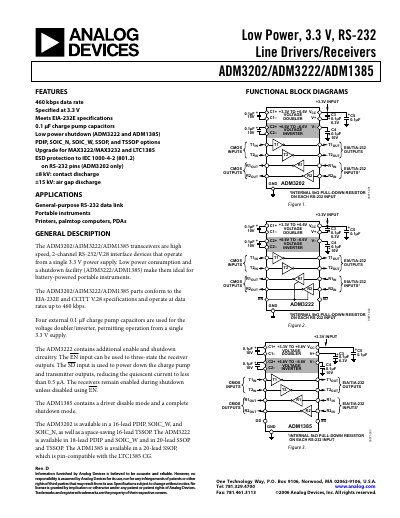

The document includes functional block diagrams, pin configurations, electrical specifications, absolute maximum ratings, typical performance curves, and ordering information for multiple package options.
| Operating Voltage Range | 3.0 V – 5.5 V |
|---|---|
| No‑load Power Supply Current | 3 mA |
| Shutdown Supply Current | 0.5 µA |
| Logic Input Low Threshold (V_INL) | 0.8 V |
| Logic Input High Threshold (V_INH) | 2.0 V |
| CMOS Output Low Voltage (V_OL) | 0.4 V |
| CMOS Output High Voltage (V_OH) | VCC − 0.6 V |
| Maximum Data Rate | 460 kbps |
The devices support data rates up to 460 kbps.
In shutdown the supply current is typically 0.5 µA.
They operate from 3.0 V to 5.5 V supply voltage.
PDIP‑16, SOIC‑N, SOIC‑W and TSSOP‑16 packages are offered.
