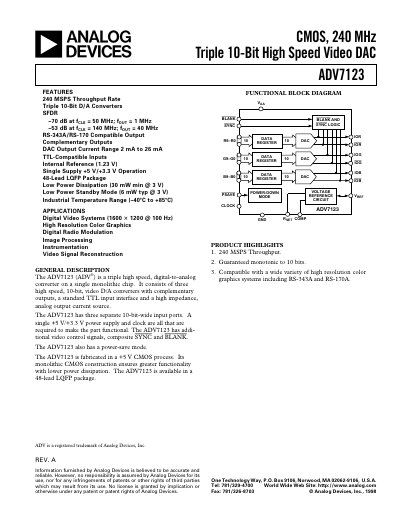

The datasheet provides the functions and features of ADV7123 240MHz Triple 10-Bit High Speed Video DAC.
The ADV7123 is a triple high‑speed 10‑bit video digital‑to‑analog converter that integrates three DACs, TTL‑compatible inputs and complementary analog outputs. It operates from a single +5 V or +3.3 V supply and is offered in a 48‑lead LQFP package.
The document lists electrical specifications, timing parameters, pin descriptions, absolute maximum ratings, ordering options and a terminology guide for the device, making it a complete reference for designers using the ADV7123 in video systems.
| Resolution (Each DAC) | 10 Bits |
|---|---|
| Output Current Range | 2 mA to 26 mA |
| Supply Voltage | Single Supply +5 V/+3.3 V |
| Power Dissipation (typical) | 30 mW min @ 3 V |
| Operating Temperature Range | –40 °C to +85 °C |
| Package | 48‑Lead LQFP |
The device operates from a single +5 V or +3.3 V supply.
Each DAC can source 2 mA up to 26 mA.
The part supports up to 240 MHz clock rates.
It is supplied in a 48‑lead LQFP package.
