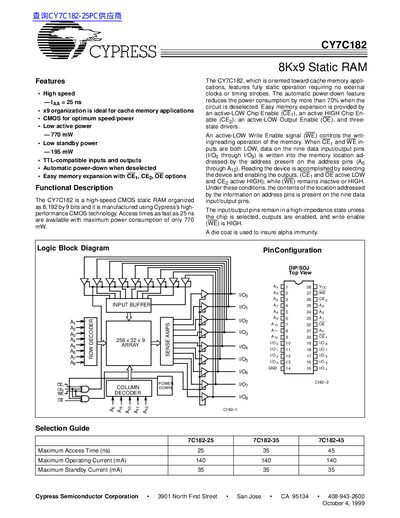

CY7C182 is a high-performance CMOS static RAM from Cypress Semiconductor Corporation. It features high speed, low power consumption, TTL-compatible inputs and outputs. It is ideal for cache memory applications.
The CY7C182 is a high‑speed CMOS static RAM organized as 8,192 × 9 bits, aimed at cache memory applications. It features TTL‑compatible I/O, low active power (770 mW) and standby power (195 mW), and an automatic power‑down mode that reduces consumption when the device is deselected.
The document lists electrical characteristics such as 25 ns access time, supply voltage range 0.5 V to 7.0 V, maximum output current 20 mA, and provides timing diagrams, switching waveforms, truth tables, and ordering information for DIP and SOJ packages.
| Organization | 8,192 × 9 bits |
|---|---|
| Access Time | 25 ns |
| Active Power Consumption | 770 mW |
| Standby Power Consumption | 195 mW |
| Supply Voltage Range | 0.5 V to 7.0 V |
| Package Types | 28‑Lead (300‑Mil) DIP and SOJ |
The device provides an access time as fast as 25 ns.
Its maximum active power consumption is 770 mW.
It is offered in 28‑Lead (300‑Mil) molded DIP and 28‑Lead molded SOJ packages.
Yes, the chip automatically powers down when deselected.
