This document describes the features and performance characteristics of the C410C109J1G5CA model of multilayer ceramic capacitors.

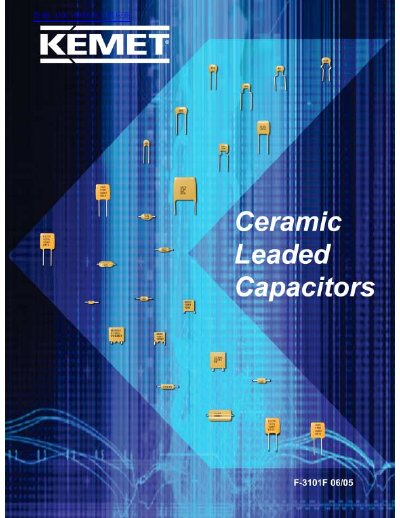

The document catalogs KEMET’s leaded multilayer ceramic capacitors in axial and radial configurations. It includes general information, performance characteristics, outline drawings, dimensions, ordering data, marking conventions, part‑number references, and packaging details.
Additional sections cover environmental test methods, application notes, and a legal notice. The data are organized by dielectric class (C0G, X7R, Z5U) and include electrical limits, temperature ranges, and mechanical specifications for each part family.
| Temperature range – C0G | -55 °C to +125 °C |
|---|---|
| Temperature range – X7R | -55 °C to +125 °C |
| Temperature range – Z5U | +10 °C to +85 °C |
| Maximum dissipation factor – C0G | 0.15 % (max) |
The C0G (NP0) dielectric is rated from –55 °C to +125 °C.
