The document describes a 10-pin flip chip with a 4:1 seating plane. The dimensions and tolerances comply with ASME Y14.5M standard. The product has specific dimensions and marking information.

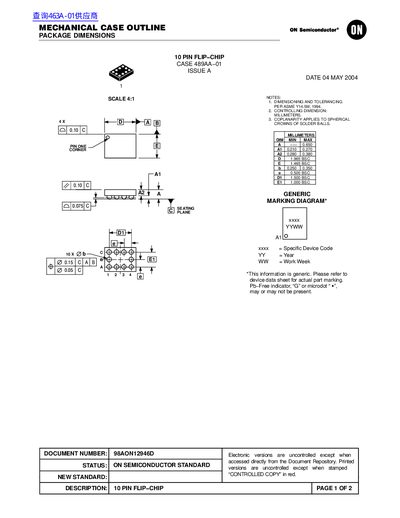

This document provides the mechanical case outline for the 10‑pin flip‑chip package identified as 489AA‑01. It includes a scaled drawing (4:1) with detailed package dimensions, tolerancing per ASME Y14.5M, and a generic marking diagram.
Additional information such as document number, issue date (04 May 2004), and legal notices are included. The outline is intended for designers and manufacturers needing precise mechanical specifications for this semiconductor package.
| Scale | 4:1 |
|---|---|
| A2 min (mm) | 0.280 |
| D dimension (BSC) | 1.965 |
| Di dimension (BSC) | 1.500 |
| Ei dimension (BSC) | 1.000 |
The drawing uses a 4:1 scale.
It shows placeholders for specific device code, year, work week, and optional Pb‑Free indicator.
