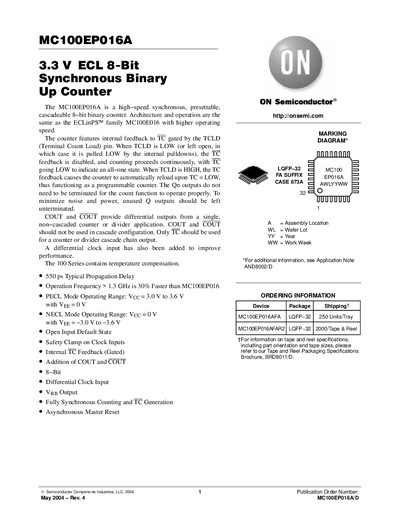

The MC100EP016A is a high-speed synchronous, presettable, cascadeable 8-bit binary counter produced by Semiconductor Components Industries, LLC, with a working frequency of up to 1.3 GHz, 30% higher than MC100EP016
The MC100EP016A is a high‑speed, presettable, cascadeable 8‑bit binary counter from ON Semiconductor. It features internal terminal‑count (TC) feedback gated by the TCLD pin, a differential clock input, and differential COUT/TOUT outputs. The device operates in PECL (3.0‑3.6 V) or NECL (0 V to –3.6 V) modes and achieves typical propagation delays of 550 ps.
Typical applications include high‑frequency counting, programmable division, and cascaded counter chains for widths greater than 8 bits. The part is supplied in a 32‑lead LQFP package and is available in tape‑and‑reel or tray packaging.
| Operating Frequency | > 1.3 GHz |
|---|---|
| Typical Propagation Delay | 550 ps |
| Package | LQFP‑32 |
| PECL Supply Voltage | 3.0 V to 3.6 V |
| NECL Supply Voltage | 0 V to –3.6 V |
| Maximum Output Current | 50 mA continuous |
| Operating Temperature Range | -40 °C to +70 °C |
The device can operate at frequencies greater than 1.3 GHz.
It is supplied in a 32‑lead LQFP package.
Yes, two devices can be cascaded without external gating, and larger widths can be built by adding more devices with external OR gates for the TC outputs.
