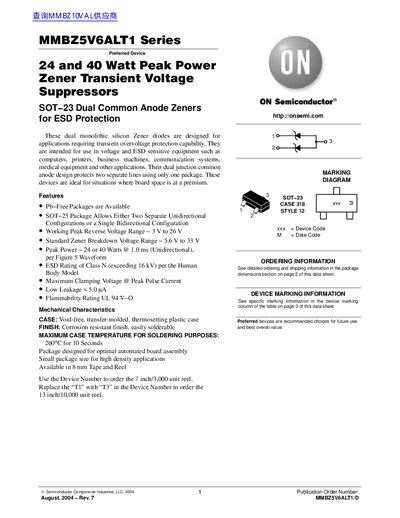

This is a 24 and 40 watt peak power Zener transient voltage suppressor for ESD protection, using SOT-23 dual common anode Zener design to protect two separate lines using only one package
The MMBZ5V6ALT1 Series are dual‑monolithic silicon Zener transient voltage suppressors offered in a SOT‑23 package. They protect voltage‑ and ESD‑sensitive equipment such as computers, printers, and communication systems, with a common‑anode design that allows two lines to be protected in a single package.
Key specifications include a peak power rating of 24 W or 40 W at 1 ms, a working reverse voltage range of 3 V to 26 V, and a breakdown voltage range of 5.6 V to 33 V. The devices feature low leakage (< 5 µA), a junction‑to‑ambient thermal resistance of 5.56 °C/W, and are supplied in tape‑and‑reel formats (3000 or 10 000 units per reel).
| Peak Power | 24 or 40 Watts @ 1.0 ms |
|---|---|
| Working Peak Reverse Voltage Range | 3 V to 26 V |
| Standard Zener Breakdown Voltage Range | 5.6 V to 33 V |
| Low Leakage Current | < 5.0 µA |
| Junction‑to‑Ambient Thermal Resistance | 5.56 °C/W |
| Package Type | SOT‑23 (TO‑236) |
The devices are rated for 24 W or 40 W peak power at a 1 ms pulse width.
They are supplied in a SOT‑23 (TO‑236) case.
