2N5060 series Sensitive Gate Silicon Controlled Rectifiers Reverse Blocking Thyristors are Annular PNPN devices designed for high volume consumer applications such as relay and lamp drivers, small motor controls, gate drivers for larger thyristors, and sensing and detection circuits.
The 2N5060 series are annular PNPN silicon controlled rectifiers (SCRs) designed for high‑volume consumer applications such as relay drivers, lamp drivers, small motor controls and gate drivers. They are supplied in a low‑cost plastic TO‑92/TO‑226AA package suitable for automatic insertion equipment.

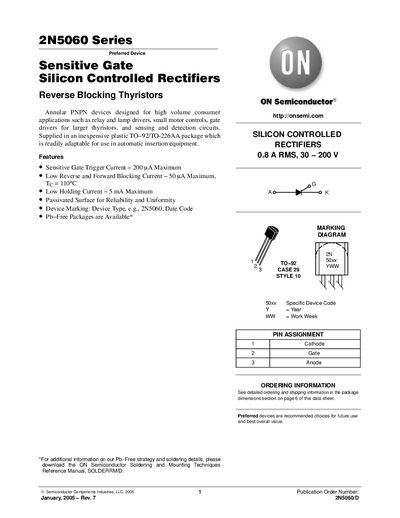

The document provides maximum ratings, electrical and thermal characteristics, ordering details, and package dimensions. It also includes legal notices and contact information for ON Semiconductor technical support.
| Low Holding Current (max) | 5 mA |
|---|---|
| Package | TO‑92 / TO‑226AA |
The devices are supplied in a plastic TO‑92/TO‑226AA package.
The 2N5064 model has a maximum reverse blocking voltage of 200 V.
