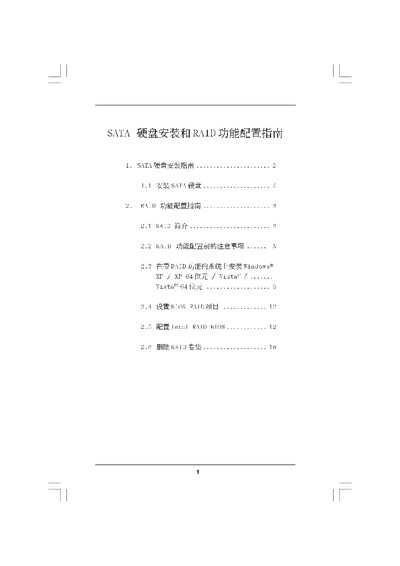

Intel ICH8R/ICH9R SATA RAID Controller Service Manual

Instruction manual

Brand: SATA硬盘安装和RAID功能
Category: Hard disk
Document type: Service Manual
Language: Chinese
Pages: 16
File format: PDF
File size: 1.9 MB
Published: 01 June, 2012
Updated: 01 October, 2023
MD5 checksum: A7AB57C68109A6746EA7914007CCCC99
PDF: Intel ICH8R/ICH9R SATA RAID Controller Service Manual PDF

About this manual

This manual provides step‑by‑step instructions for installing SATA hard drives and configuring RAID functions on Intel ICH8R/ICH9R SATA RAID Controllers. It includes hardware installation, BIOS configuration, and preparation before enabling RAID.

The guide also details operating‑system installation procedures for Windows XP, XP 64‑bit, Vista and Vista 64‑bit, as well as using the RAID Ready utility, creating and deleting RAID volumes, and troubleshooting tips. This manual is written in Chinese.

What's inside

SATA Hard Disk Installation Guide
RAID Function Configuration Guide
RAID Introduction
Installation Precautions
BIOS Setup for RAID
Windows Installation with RAID
RAID Ready Utility
Creating and Deleting RAID Volumes

Specifications

Supported operating systems	Windows XP, Windows XP 64‑bit, Vista, Vista 64‑bit

Frequently asked questions

What operating systems are supported for RAID installation?

Windows XP, Windows XP 64‑bit, Vista and Vista 64‑bit are supported.
