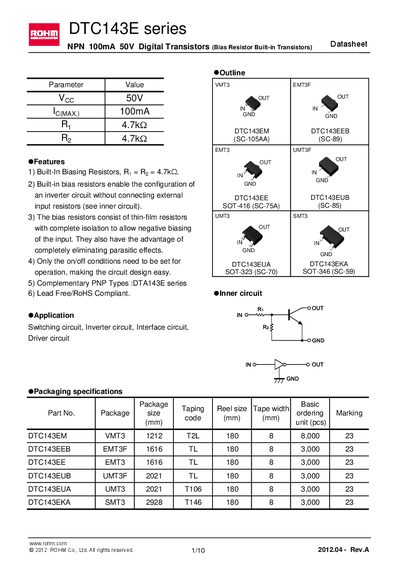

This datasheet introduces the features and characteristics of the DTC143E series NPN 100mA 50V Digital Transistors (Bias Resistor Built-in Transistors).
The DTC143EUA is an NPN digital transistor with built‑in bias resistors (4.7 kΩ) that simplify inverter circuit design. It is RoHS compliant and offered in several SOT packages.
The datasheet provides absolute maximum ratings, electrical characteristics, characteristic curves, mechanical dimensions, and packaging information for the DTC143E series, along with legal notices and usage guidelines.
| Supply voltage | 50 V |
|---|---|
| Input voltage range | -10 V to +30 V |
| Output current | 100 mA |
| Junction temperature | 150 °C |
The maximum supply voltage is 50 V.
The input voltage can range from –10 V to +30 V.
