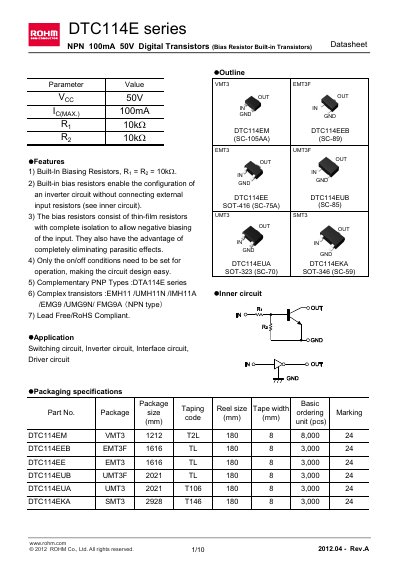

DTC114E series NPN 100mA 50V Digital Transistors (Bias Resistor Built-in Transistors)
The DTC114EE is a digital NPN transistor in the DTC114E series offering 100 mA collector current and 50 V breakdown voltage. It features built‑in 10 kΩ bias resistors, allowing inverter or switching circuits without external resistors.
The datasheet lists absolute maximum ratings, typical electrical characteristics, and detailed package dimensions for the various SOT‑416, SOT‑323 and SOT‑346 footprints. Application examples include switching, inverter, interface and driver circuits.
| Supply voltage (VCE) | 50 V |
|---|---|
| Input voltage range | -10 to +40 V |
| Output current (IO) | 50 mA |
| Maximum collector current | 100 mA |
| Built‑in bias resistor value | 10 kΩ |
| Junction temperature limit | 150 °C |
The built‑in bias resistors are 10 kΩ (Ry = Re = 10 kΩ).
Typical applications include switching circuits, inverter circuits, interface circuits, and driver circuits.
The device is rated for a junction temperature up to 150 °C.
