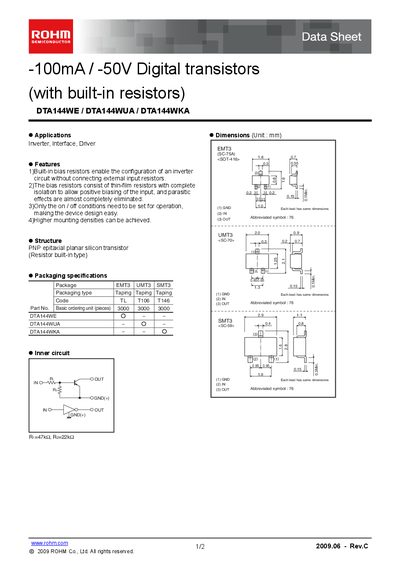

DTA144WE / DTA144WUA / DTA144WKA are digital transistors with built-in resistors. It can be used for applications such as inverters, interfaces, and drivers.
The DTA144WUA is a -100 mA / -50 V digital transistor that includes built‑in thin‑film bias resistors, allowing inverter circuits without external resistors. Its compact SOT‑416/SC‑70 package enables high mounting density and easy circuit design.
The sheet lists absolute maximum ratings, typical electrical characteristics, and example application circuits. It also contains packaging details, dimension data, and a notice about usage restrictions and non‑radiation‑tolerant design.
| Supply voltage (Veo) | -50 V |
|---|---|
| Input voltage (Vi) | -40 to 10 V |
| Junction temperature (Tj) | 150 °C |
| DC current gain (hFE) | 56 |
| Transition frequency (fT) | 250 MHz |
The maximum supply voltage is –50 V.
The built‑in resistors are R1 = 47 kΩ and R2 = 22 kΩ.
No, the product is not designed to be radiation tolerant.
