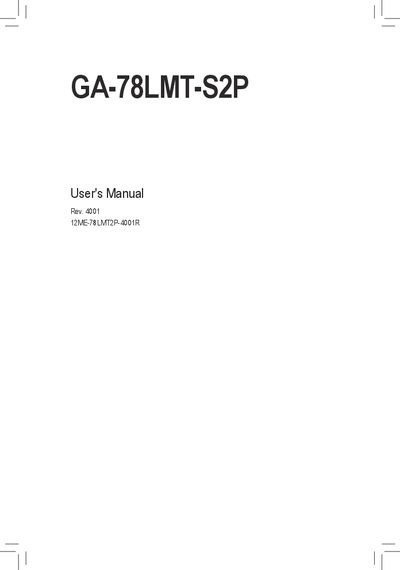

GA-78LMT-S2P User's Manual, introduces the hardware installation, connection, BIOS settings and other contents of the motherboard
This manual covers safe hardware installation, BIOS configuration, driver installation, and detailed specifications for the Gigabyte GA-78LMT-S2P ATX motherboard. It includes safety warnings, ESD precautions, and guidance on connecting CPUs, memory, storage, and peripherals.
The document also lists the motherboard’s technical features such as supported CPUs, memory types, expansion slots, USB ports, SATA interfaces, LAN, audio, and video outputs, as well as regulatory compliance information.
| CPU Socket | AM3+ (supports AMD AM3+ and AM3 processors) |
|---|---|
| North Bridge Chipset | AMD 760G |
| South Bridge Chipset | AMD SB710 |
| Memory Slots | 2 x DDR3 DIMM, up to 8 GB, 1333+/1066/800 MHz |
| SATA Connectors | 6 x SATA 3 Gb/s, RAID 0/1/10/JBOD |
| USB Ports | Up to 8 USB 2.0/1.1 ports (4 rear, 4 internal) |
| LAN | 1 x Atheros/Realtek GbE (10/100/1000 Mbit) |
| Audio | Realtek/VIA HD codec, 2/4/5.1/7.1‑channel |
| Video Outputs | 1 x D‑Sub, 1 x DVI‑D (max 1920×1200) |
The board provides up to eight USB 2.0/1.1 ports – four on the back panel and four via internal USB headers.
It uses an AM3+ socket that supports AMD AM3+ and AM3 processors such as Phenom II and Athlon II.
The motherboard includes six SATA 3 Gb/s connectors with support for RAID 0, RAID 1, RAID 10, and JBOD.
