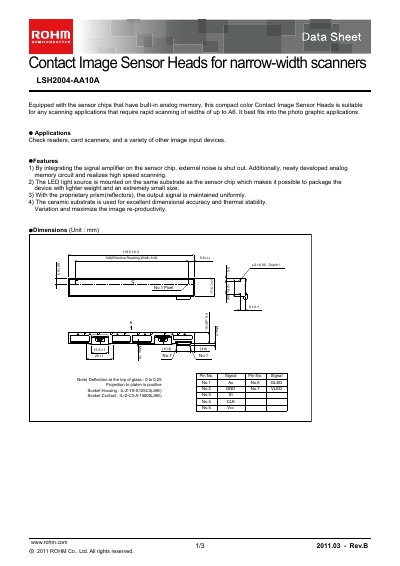

This document introduces ROHM's LSH2004-AA10A sensor head product, which is suitable for any scanning applications that require rapid scanning of widths of up to A6.
The LSH2004-AA10A is a compact color contact image sensor head designed for rapid scanning of widths up to A6, suitable for photo‑graphic and other image‑input applications such as check readers and card scanners. It integrates an analog memory circuit and LED light source on a ceramic substrate for high dimensional accuracy and thermal stability.
The data sheet lists key electrical characteristics, pin functions, timing diagrams, and internal circuit details, enabling designers to incorporate the sensor into electronic equipment like audio‑visual devices, office automation, and communication equipment.
| Effective scanning width | 104 mm |
|---|---|
| Primary scan dot density | 203 dpi |
| Total dot number | 864 dots |
| Power supply voltage (Vop) | 5 V |
| Scanning speed (SLT) | 0.4 ms / line |
| Clock frequency | 1.25 MHz |
| Maximum dynamic range (VRMax.) | 0.75 V |
| Minimum dynamic range (VRMin.) | 0.375 V |
| Dark output (Vod) | 1.740 V |
| Operating temperature | -5 to 45 °C |
The effective scanning width is 104 mm.
It operates from a 5 V power supply (Vop).
Pin 6 is G‑LED (LED ground) and pin 7 is V‑LED (LED power supply).
The scanning speed is 0.4 ms per line.
