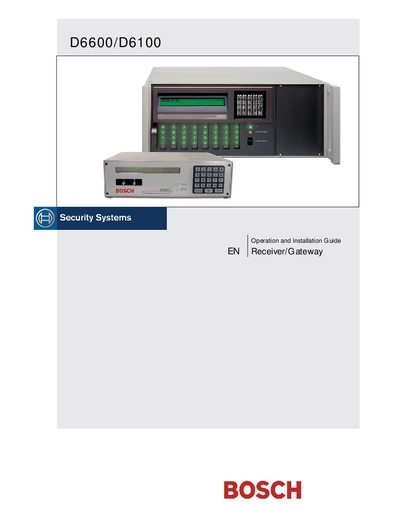

This document is an operation and installation guide for the Bosch Security Systems D6600/D6100 Receiver/Gateway. The document covers topics such as emergency procedures, card functions and locations, specific cards, power supply modules, printer specifications, and installation.
The Bosch D6600/D6100 Receiver/Gateway is a modular security communications device with plug‑in circuit boards, a front‑panel keypad, and an LCD display. It supports up to 32 telephone lines through various line cards and includes power‑supply modules, LED status indicators, and optional network adapters.
This guide provides step‑by‑step installation instructions, emergency procedures, card function details, power and standby specifications, input/output port wiring, and a troubleshooting section to help technicians and installers configure and maintain the system.
| LCD display capacity | 80 characters (two lines of up to 40 characters each) |
|---|---|
| Keypad buttons | 20‑button keypad |
| Maximum telephone lines | 32 receiving lines |
| CPU card model | D6610 |
The D6600 can support up to 32 receiving telephone lines when fully populated with line cards.
