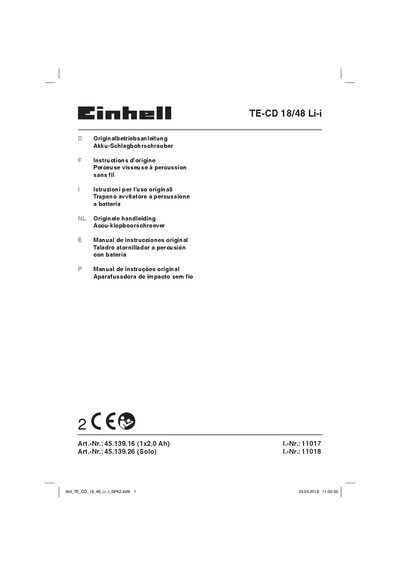

This document provides detailed information and instructions about TE-CD 18/48 Li-i Art.-Nr.: 45.139.16 (1x2,0 Ah) I.-Nr.: 11017 Art.-Nr.: 45.139.26 (Solo) I.-Nr.: 11018 2 D Originalbetriebsanleitung Akku-Schlagbohrschrauber F Instructions d’origine Perceuse visseuse à percussion sans fi l I Istruzioni per l’uso originali Trapano avvitatore a percussione a batteria NL Originele handleiding Accu-klopboorschroever E Manual de instrucciones original Taladro atornillador a percusión con batería P Manual de instruções original Aparafusadora de impacto sem fi o, describing the features and uses of the product.
This manual gives the safety instructions and required protective equipment for the Bosch TE‑CD 18/48 Li‑i cordless hammer drill, including warnings about hearing protection, eye protection, dust masks and proper storage of the batteries. It also explains the intended use of the tool for drilling, screwing and hammer drilling in wood, metal, plastic and stone.
The guide details the device’s components, how to charge the Li‑Ion battery, select torque settings, change the chuck, operate the direction switch and use the LED light. Technical data such as voltage, speed ranges, battery capacity and sound levels are listed, and the manual includes cleaning, maintenance, spare‑part ordering and disposal instructions. This manual is written in German.
| Supply voltage | 18 V DC |
|---|---|
| No‑load speed | 0‑400 / 0‑1500 min⁻¹ |
| Torque settings | 21+1+1 |
| Maximum chuck size | 13 mm |
| Battery type | Li‑Ion |
| Battery capacity | 2.0 Ah |
| Weight | 1.8 kg |
| Maximum screw diameter | 6 mm |
| Sound pressure level | 86.53 dB(A) |
Insert the battery pack into the charger, connect the charger to a 200‑250 V~ 50‑60 Hz outlet, and the green LED will start blinking until charging is complete.
