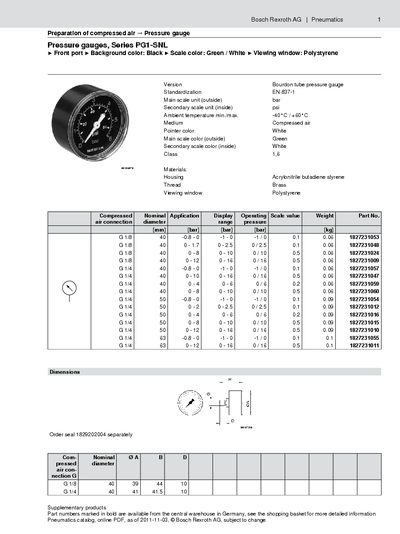

Bosch Rexroth PG1-SNL Series Pressure Gauge Datasheet

Bosch Rexroth PG1-SNL series pressure gauge, front port, background color black, scale color green/white, viewing window polystyrene.

Brand: Bosch
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 2
File format: PDF
File size: 199 KB
Published: 11 July, 2012
Updated: 30 September, 2023
MD5 checksum: D4CEBAB3557F4D6B349CA4BAD30B0279
PDF: Bosch Rexroth PG1-SNL Series Pressure Gauge Datasheet PDF

About this manual

This document provides technical data for the Bosch Rexroth PG1-SNL series of Bourdon tube pressure gauges. The gauges are designed for measuring compressed air and comply with standardization EN 837-1. Key features include a black background, green and white scale colors, and a polystyrene viewing window.

What's inside

Pressure gauges, Series PG1-SNL
Main scale unit
Secondary scale unit
Ambient temperature
Medium
Materials
Compressed air connection
Dimensions
Supplementary products

Specifications

Standardization	EN 837-1
Main scale unit	bar
Secondary scale unit	psi
Ambient temperature range	-40°C/+60°C
Medium	Compressed air
Housing material	Acrylonitrile butadiene styrene
Thread material	Brass
Viewing window material	Polystyrene

Frequently asked questions

What medium is this pressure gauge designed for?

This gauge is intended for use with compressed air.

What are the minimum and maximum ambient temperatures for operation?

The gauge operates in ambient temperatures ranging from -40°C to +60°C.
