This document provides specifications and characteristics of 40 high voltage multilayer ceramic capacitors, including SV series C0G style capacitors with rated voltages ranging from 1000V to 5000V, and capacitance values ranging from 10pF to 6800pF.

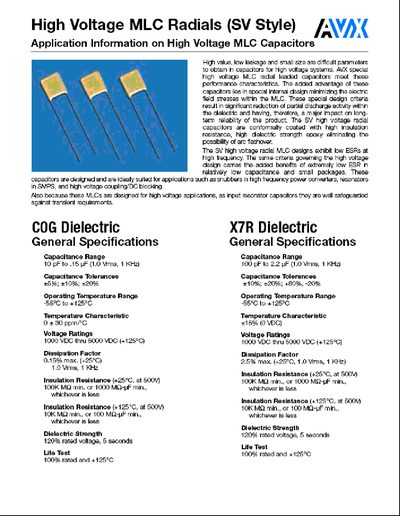

This datasheet provides the electrical specifications for AVX high‑voltage multilayer ceramic (MLC) radial capacitors in the SV style. It covers both C0G and X7R dielectric types, offering capacitance ranges for voltage ratings of 1000 V, 2000 V, 3000 V, 4000 V, and 5000 V across model numbers SV01‑SV17.
Capacitance values are given as minimum and maximum limits for each voltage rating, and the document notes that other voltage ratings or values can be obtained by contacting the factory. The specifications follow MIL‑PRF‑49467 testing requirements.
| SV01 C0G 1000 V capacitance range | 100 pF – 1000 pF |
|---|---|
| SV01 X7R 1000 V capacitance range | 1000 pF – 0.012 µF |
| Available voltage ratings | 1000 V, 2000 V, 3000 V, 4000 V, 5000 V |
The capacitors are offered at 1000 V, 2000 V, 3000 V, 4000 V, and 5000 V ratings.
Contact the factory for other voltage ratings or values.
