QTLP670C is a LED lamp produced by Fairchild Semiconductor Corporation. It has high brightness, large viewing angle, low power consumption, etc. It is suitable for automotive interior lighting, consumer electronics and office equipment status indication.

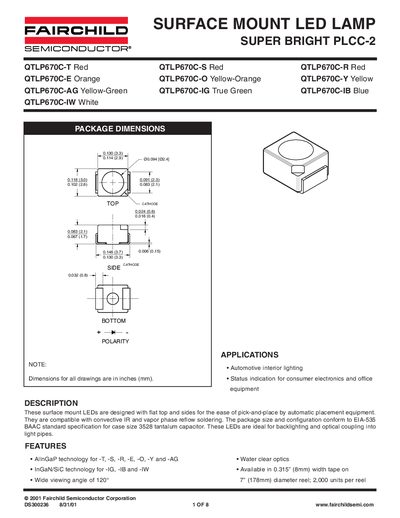

The Fairchild Super Bright PLCC-2 series provides surface‑mount LEDs with flat tops and sides for easy pick‑and‑place. They are compatible with convective IR and vapor‑phase reflow soldering and meet the EIA‑535 standard for 3528 case size.
The document lists absolute maximum ratings, electrical/optical characteristics, recommended PCB layout, reflow profile, and tape‑and‑reel dimensions, plus legal disclaimer and life‑support policy information.
| Continuous Forward Current (Ip) | 30 mA (most colors) |
|---|---|
| Power Dissipation (Pp) | 72 mW (most colors) |
| Operating Temperature (Topr) | -40 °C to +95 °C |
| Luminous Intensity (Typical, 20 mA) | 45 cd (Red) to 65 cd (other colors) |
| Forward Voltage (Typical, 20 mA) | 2.0 V (most colors) |
The maximum continuous forward current is 30 mA for most color variants (25 mA for the AG version).
Yes, the document notes automotive interior lighting as an application.
The recommended PCB pattern uses a 0.063 in (1.60 mm) trace width for the leads.
