TLP106 is a kind of optocoupler produced by Toshiba. It is mainly used to isolate input control signals and has the characteristics of strong anti-interference ability and stable performance.
The TLP106 is a GaAs light‑emitting diode and high‑gain photo detector optocoupler designed for input signal isolation in industrial inverters and motor drives. It features a totem‑pole output stage with built‑in Schmitt trigger and a guaranteed common‑mode transient immunity of 10 kV/µs.

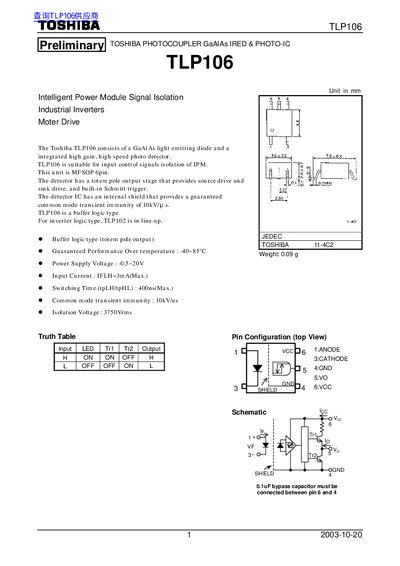

The document lists recommended operating conditions, detailed electrical characteristics, switching performance, test circuit diagrams and usage restrictions. It includes parameters such as isolation voltage, supply voltage range, input and output currents, propagation delay times and temperature limits.
| Isolation Voltage | 3750 Vrms |
|---|---|
| Supply Voltage (VCC) | 4.5 – 20 V |
| Input Voltage (OFF) VF(OFF) | 0 – 0.8 V |
| Common Mode Transient Immunity | 10 kV/µs |
| Propagation Delay (tpLH) max | 400 ns |
The isolation voltage is rated at 3750 Vrms.
The recommended supply voltage (VCC) is between 4.5 V and 20 V.
The maximum propagation delay (tpLH) is 400 ns.
It provides a common‑mode transient immunity of 10 kV/µs.
