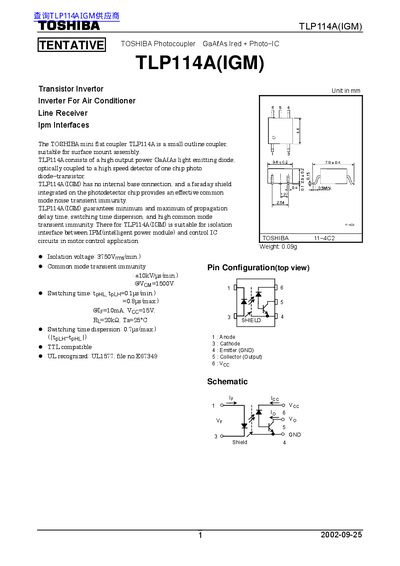

TLP114A(IGM) is a small outline coupler suitable for surface mount assembly. It consists of a high output power GaAℓAs LED optically coupled to a high-speed detector. TLP114A(IGM) is suitable for isolation interface between IPM (intelligent power module) and control IC circuits.
The TLP114A(IGM) is a miniature GaAs photocoupler designed for surface‑mount assembly, offering high output power and excellent common‑mode transient immunity. It is intended for isolation between intelligent power modules and control ICs in motor‑control applications.
Key specifications include a 3750 Vrms isolation voltage, typical forward voltage of 1.42 V at 16 mA, maximum output current of 8 mA, and propagation delay times around 0.45 µs. The device operates from –55 °C to 100 °C and meets UL1577 safety standards.
| Maximum output current | 8 mA |
|---|
The maximum output current is 8 mA.
