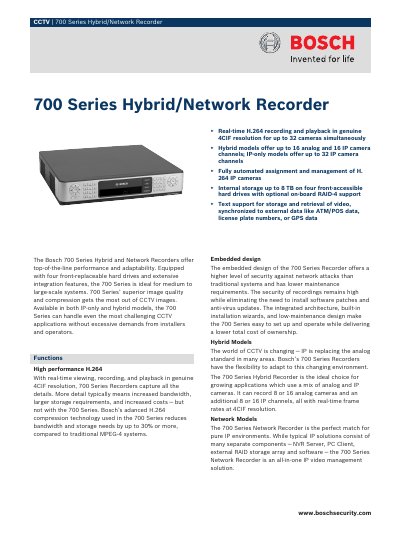

The Bosch 700 Series Hybrid and Network Recorders offer top-of-the-line performance and adaptability. Equipped with four front-replaceable hard drives and extensive integration features, the 700 Series is ideal for medium to large-scale systems. The 700 Series' superior image quality and compression technology maximize the potential of CCTV images. Available in both IP-only and hybrid models, the 700 Series can handle even the most challenging CCTV applications without causing excessive demands on installers and operators.
This manual describes the Bosch 700 Series hybrid and network recorders, which support up to 32 H.264 cameras, four front‑replaceable hard drives (up to 8 TB) and optional RAID‑4 for reliable storage. It covers both hybrid models that combine analog and IP inputs and pure IP network models, detailing features such as high‑performance H.264 compression, embedded security design, and integrated management tools.
Installation, configuration, and daily use are explained, including power requirements, network connections, alarm I/O, and optional accessories. Technical specifications, dimensions, environmental limits, and ordering information are provided to help installers and operators set up the system efficiently.
| Power Input | 100 to 240 VAC; 50/60 Hz |
|---|---|
| Power Consumption | Max. 2.5 to 1.0 A (250 W) |
| Maximum Camera Support | Up to 32 H.264 cameras (16 analog + 16 IP or 32 IP) |
| Internal Storage Capacity | Up to 8 TB on four front‑replaceable hard drives |
| Video Resolution | Genuine 4CIF resolution |
| Operating Temperature Range | +5 °C to +45 °C |
It can handle up to 32 H.264 cameras – hybrid models support up to 16 analog and 16 IP channels, while network models support up to 32 IP channels.
The recorder can hold up to 8 TB of data on four front‑replaceable hard drives, with optional RAID‑4 for added reliability.
It operates on 100‑240 VAC, 50/60 Hz and draws a maximum of 2.5 to 1.0 A (about 250 W).
Yes, up to sixteen 700 Series recorders can be controlled from a single IntuiKey keyboard using the loop‑through feature.
