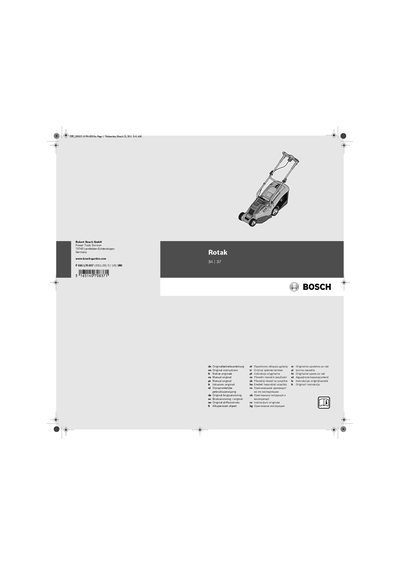

This manual provides instructions for operation of the UNI Rotak 34 / 37, including features and usage guidance.
This manual contains the safety notes, symbols, and general precautions required for safe operation of the Rotak 34 and Rotak 37 lawn mowers. It explains the intended domestic use, required protective equipment, and electrical safety measures such as using approved extension cords and residual‑current devices.
The document also covers operating procedures, blade maintenance, height‑of‑cut adjustment, troubleshooting, and detailed technical data including power input, blade width, noise levels and recommended extension‑cable sizes. Service and after‑sales contact information for various regions is provided at the end.
| Article number | 3 600 H82 0.. / 3 600 H82 1.. |
|---|---|
| Rated power input | 1300 W (Rotak 34) / 1400 W (Rotak 37) |
| Blade width | 34 cm (Rotak 34) / 37 cm (Rotak 37) |
| Height of cut | 20–70 mm |
| Grassbox capacity | 40 L |
| Weight | 11.0 kg (Rotak 34) / 11.2 kg (Rotak 37) |
| Operating voltage | 230 V AC, 50 Hz (220‑240 V for non‑EU) |
| Extension‑cable size 2.5 mm² | max 100 m |
| Sound pressure level (A‑weighted) | 83 dB(A) (Rotak 34) / 84 dB(A) (Rotak 37) |
| Sound power level | 93 dB (Rotak 34) / 94 dB (Rotak 37) |
The mowers operate on 230 V AC at 50 Hz (for non‑EU countries the voltage may be 220 V or 240 V).
No – never touch the mains plug with wet hands.
