The NC7SP00 is a single 2-input NAND Gate from Fairchild's Ultra Low Power (ULP) Series of TinyLogic. Ideal for applications where battery life is critical, this prod- uct is designed for ultra low power consumption within the VCC operating range of 0.9V to 3.6V. The internal circuit is composed of a minimum of inverter stages including the output buffer, to enable ultra low static and dynamic power. The NC7SP00, for lower drive requirements, is uniquely designed for optimized power and speed, and is fabricated with an advanced CMOS technology to achieve best in class speed operation while maintaining extremely low CMOS power dissipation.
The NC7SP00 is a single 2‑input NAND gate from Fairchild's Ultra Low Power (ULP) TinyLogic series. It is designed for battery‑critical applications, offering ultra‑low static and dynamic power consumption across a supply range of 0.9 V to 3.6 V.

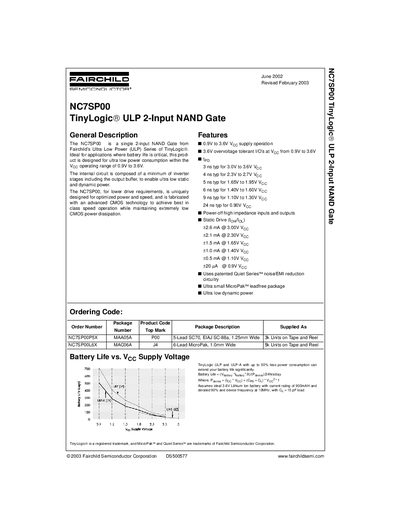

The datasheet provides full pinout information, absolute maximum ratings, DC and AC electrical characteristics, propagation delay values, leakage currents, and packaging details for both the 5‑lead SC70 and 6‑lead MicroPak options. Tape‑and‑reel handling and physical dimensions are also included.
| Supply Voltage (Vcc) Range | 0.9 V to 3.6 V |
|---|---|
| Typical Propagation Delay (3 V) | 3 ns typ |
| Static Drive Current @ 3 V | 42.6 mA |
| Package Type (5‑lead) | SC70, EIAJ SC‑88a, 1.25 mm wide (MAA05A) |
| Package Type (6‑lead) | MicroPak, 1.0 mm wide (MACO6A) |
It operates from 0.9 V up to 3.6 V.
The typical propagation delay is 3 ns.
