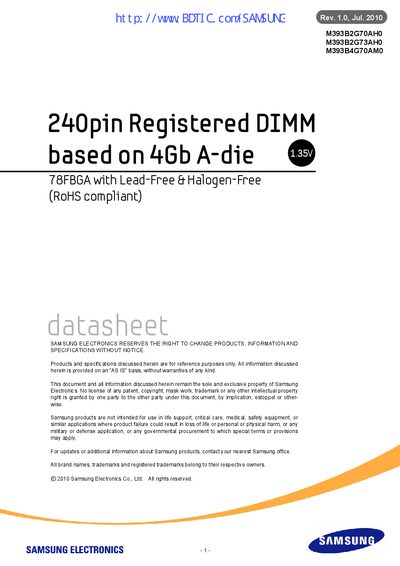

This document introduces the features and characteristics of the M393B2G70AH0 and M393B2G73AH0 products, including the product's package type, memory capacity, operating voltage, operating frequency, and interface type.
This handbook describes the Samsung M393B2G70AH0 16 GB DDR3L Registered DIMM. It includes ordering information, key features, electrical characteristics, pinout diagrams, and mechanical dimensions for system designers and integrators.
The document also covers thermal‑sensor integration, voltage and timing specifications, and a heat‑spreader design guide, helping engineers select and implement the module in server and workstation platforms.
| Capacity | 16 GB |
|---|---|
| Operating voltage | 1.35 V (1.28‑1.45 V) and 1.5 V (1.425‑1.575 V) |
| CAS latency options | 6, 7, 9 |
| Thermal sensor resolution | 0.25 °C per LSB |
It is a 16 GB module organized as 2 G×72 with 1 G×4 SDRAM chips.
It operates at 1.35 V (range 1.28‑1.45 V) or 1.5 V (range 1.425‑1.575 V).
Yes, all Samsung RDIMMs support an on‑DIMM thermal sensor.
