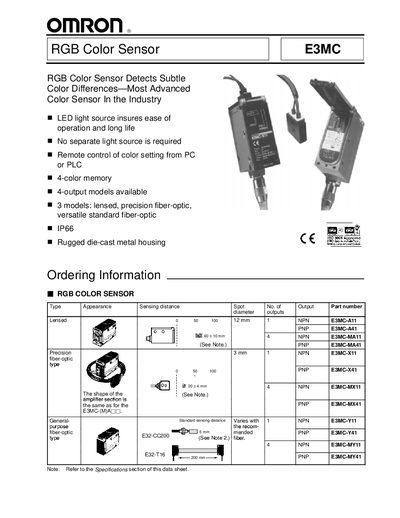

E3MC RGB color sensor detects subtle color differences - the most advanced color sensor in the industry.
The Omron E3MC is a robust RGB color sensor designed to detect subtle color differences. It features an integrated LED light source, eliminating the need for separate illumination, and offers remote control via PC or PLC. The sensor provides four-color memory and is available in three configurations: lensed, precision fiber-optic, and versatile standard fiber-optic types.
| Light source wavelengths | Red (680 nm), green (525 nm), and blue (450 nm) LEDs |
|---|---|
| Supply voltage | 12 to 24 VDC+10%, ripple (p-p) 10% max. |
| Current consumption | 100 mA max. |
| Load current | 100 mA max. |
| Response time (Standard mode, 1-output) | 3 ms max. |
| Timer function | 40-ms OFF-delay timer |
| Enclosure rating | IEC IP66 |
| Operating temperature range | -25°C to 55°C |
No, the sensor includes an m@ LED light source that insures ease of operation.
The sensor features 4-color memory for teaching operations.
