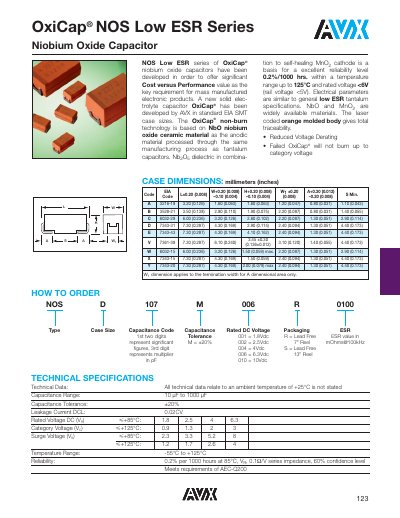

This document is the datasheet for AVX OxiCap® NOS Low ESR Series Niobium Oxide Capacitor. This series products are based on non-burn technology and have excellent reliability level. Electrical parameters are similar to general low ESR tantalum specifications.
The OxiCap® NOS Low ESR Series uses niobium oxide ceramic material and a self‑healing MnO₂ cathode to deliver high reliability and non‑burn characteristics for mass‑manufactured electronic products. The series is offered in standard EIA SMT case sizes and is lead‑free.
The handbook lists detailed electrical parameters, ESR values at 100 kHz, temperature range, reliability data, part numbers, case dimensions, and packaging options (7" and 13" reels). It also includes ordering codes and reference tables for designers selecting the appropriate capacitor.
| Capacitance range | 10 µF to 1000 µF |
|---|---|
| ESR (100 kHz) | specified in mΩ |
| Temperature range | -55 °C to +125 °C |
| Reliability | 0.2 % per 1000 h at 85 °C |
The ESR is given in milliohms at 100 kHz, for example 0.540 mΩ for part NOSB107M001.
They operate from –55 °C up to +125 °C.
The series meets a reliability of 0.2 % per 1000 hours at 85 °C.
They are supplied in lead‑free reels, either 7‑inch or 13‑inch in size.
