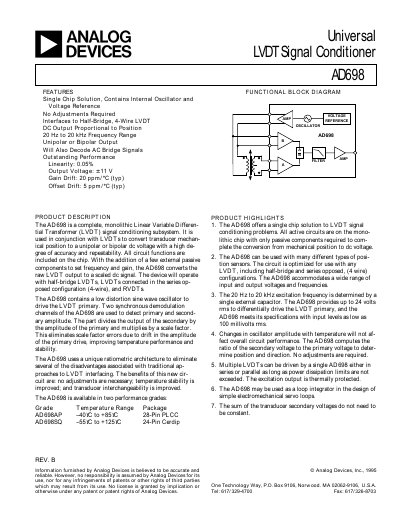

The AD698 is a complete, monolithic Linear Variable Differential Transformer (LVDT) signal conditioning subsystem. It is used in conjunction with LVDTs to convert transducer mechanical position to a unipolar or bipolar dc voltage with a high degree of accuracy and repeatability.
The AD698 is a monolithic LVDT signal‑conditioning subsystem that converts mechanical position to a precise unipolar or bipolar DC voltage. It integrates an oscillator, voltage reference and demodulation circuitry, requiring only a few external passive components.
The handbook provides a complete description of the device, including functional block diagrams, detailed electrical specifications, theory of operation, connection diagrams for dual‑ and single‑supply configurations, design procedures, and ordering information.
| Output Current (T MIN to T MAX) | 11 mA |
|---|---|
| Operating Temperature Range (AD698SQ) | –55 °C to +125 °C |
| Input Impedance | 200 kΩ |
Yes, the AD698 supports single‑supply operation with an output range of 0 V to +10 V.
The AD698SQ grade is rated from –55 °C to +125 °C.
