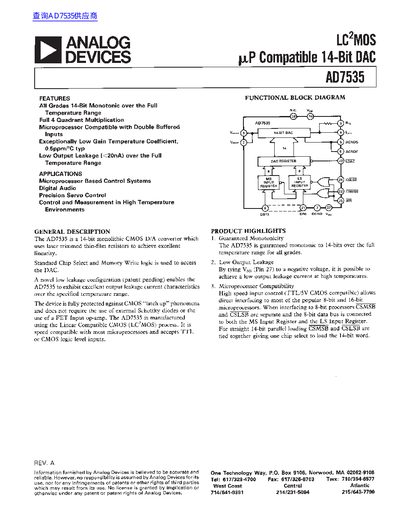

The AD7535 is a 14‑bit monolithic CMOS digital‑to‑analog converter that uses laser‑trimmed thin‑film resistors for excellent linearity. It features guaranteed monotonicity, low output leakage, and compatibility with TTL or CMOS logic levels.
The document provides detailed specifications, pin configurations, timing diagrams, grounding techniques, and mechanical dimensions for both ceramic and plastic DIP packages, along with application notes for microprocessor‑based control systems and high‑temperature environments.
| Relative Accuracy | +2 LSB max |
|---|---|
| Differential Nonlinearity | +1 LSB max |
| Output Leakage Current | <20 nA |
Output leakage is less than 20 nA over the full temperature range.
